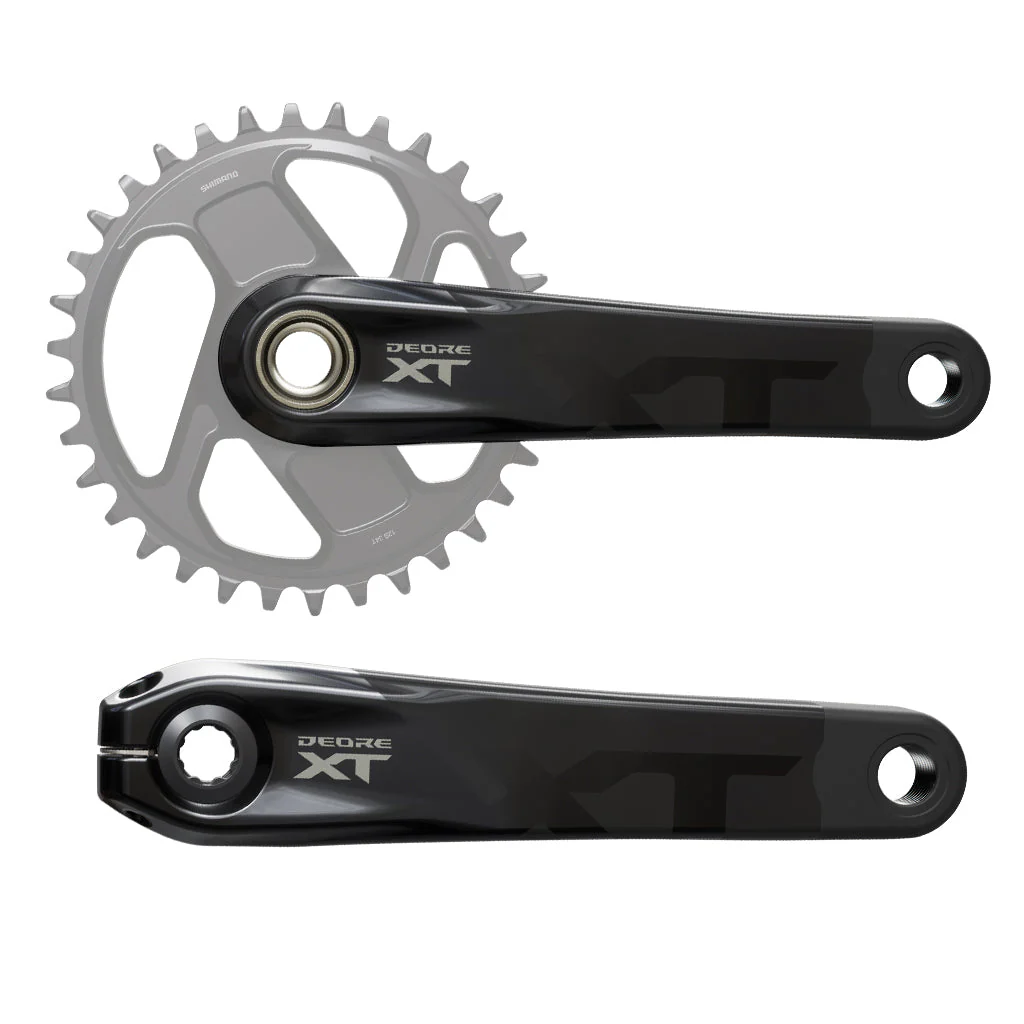

The FC-M8200 DEORE XT crankset perfectly balances rigidity and weight, using HOLLOWTECH II alloy forging and a standard 24 mm steel spindle to create a crankset that's strong enough to survive burly impacts, while remaining light enough for XC use. Offered in lengths from 160 - 175 mm and with all sizes of the reinforced SM-CR86 direct-mount chainring, there is a specification of FC-M8200 for every trail rider..

FEATURES

• Enduro Durability: Perfected HOLLOWTECH II forging provides optimal weight, stiffness, and rigidity for both all-day trail riding and enduro racing.
• Q Factor/Chain line: An optimized 176 mm Q Factor brings race-feel familiarity, while a unified 55 mm chain line offers maxed-out frame compatibility-no wheel or cassette changes required.
• Compatibility: M8200 cranks come standard with a 24 mm spindle and are compatible with SHIMANO's threaded and press-fit bottom brackets.



SPECIFICATIONS

Crank Arm Lengths: 160mm, 165mm, 170mm, 175mm
Number of speeds: 12
Compatible Chain: HG 12-speed
Chain line: 55mm
O.L.D: 148mm
P.C.D.: Direct Mount
Q-factor: 170mm
Compatible Bottom Bracket: Outboard
Recommended Threaded Bottom Bracket: SM-BB93
Recommended Press-Fit Bottom Bracket: SM-BB94-41A
Thread Bottome Bracket Shell Width: 68/73mm
