Same legendary Devinci capability. Only smaller.

Born-to-ride meets built-to-shred on this little trail ripper. The Ewoc FS packs the legendary capability of our trail bikes into a smaller package that's specifically built for the needs of young riders. Its ultra low standover height, custom tuned suspension kinematics, wide tire clearance and aggressive geometry deliver performance that's usually reserved for adults. The Canadian-made frame is built to last and grow with the rider by switching the 24" stock wheels for larger 26" hoops. Unstoppable starts here.

SPECS

Frame

FRAME Aluminum Optimum G04 125mm
HEADSET FSA Orbit | 1.5E | Zero Stack
SEAT CLAMP Alloy CNC | 34.9mm

Suspension

SUSPENSION FORK XFusion Velvet RL | Kids tune | 140mm | w/Lockout & Rebound
REAR SHOCK X-fusion O2Pro RL | 170x35mm
REAR SHOCK XFusion O2 Pro RL | Kids Tune | 170x35mm

Cockpit

HANDLEBAR V2 Pro | B:31.8mm | R:18mm | W:680mm
STEM V2 Comp 31.8 | 0 degree
STEM V2 Comp 31.8 | 35mm ext | 0 degree
SADDLE Devinci
SEATPOST TranzX Dropper 31.6mm 1xLever
SEATPOST TranzX Dropper | 31.6mm | 1xLever | 100mm | Kids Tune
GRIPSDevinci Performance | w/lock-on

Brakes

FRONT BRAKE Promax DSK-926 | 2 Pistons
REAR BRAKE Promax DSK-926 | 2 Pistons
ROTORS Promax Stainless 180mm
ROTORS Stainless 180mm

Drivetrain

REAR DERAILLEUR SRAM SX Eagle 12s
REAR SHIFTER SRAM SX Eagle | 12s
CRANKSET Sram SX Eagle 30T 155mm Boost 148
CRANKSET Sram SX Eagle 30T Boost 148
BOTTOM BRACKET Truvativ Power Spline
CASSETTE SRAM PG1210-12s 11-50T
CHAIN KMC X12 | 12s
CHAIN SRAM SX Eagle | 12s

Wheels

FRONT RIM V2 Comp 24 | 27mm inner
FRONT RIM V2 Comp | 27mm inner
FRONT HUB Formula DC-71 | Sealed | 6bolts TA 15x100mm
FRONT HUB Formula | DC-71 | Sealed | 6bolts TA 15x100mm
REAR HUB Formula | DHT-148 | 6 Bolts TA 12x148 BOOST
REAR HUB Formula TA 12x148 BOOST
REAR RIM V2 Comp 24 | 27mm inner
SPOKES Stainless 14G
FRONT TIRE Kenda Amrak K1247 | 24x2.4
FRONT TIRE Kenda Amrak K1247 24*2.4
REAR TIRE Kenda Amrak K1247 24*2.4

REAR TIRE Kenda Amrak K1247 | 24x2.4

Geometry

*THE PERFECT FIT Please note that only Devinci authorized retailers are able to advise you properly on the correct bike size. Please visit your nearest store so they can analyze your needs. In the case of internet shopping, it is equally important to provide the necessary measurements (e.g. inseam length) so that the retailer can give you the correct information.

	One size
A - ST (MM)	310
B - SA (DEG)	76.0
C - HA (DEG)	64.5
D - TT (MM)	511
E - REACH (MM)	375
F - CS (MM)	419
G - WB (MM)	1097
H - BBH (MM)	310
I - SOH (MM)	633
J - STACK (MM)	544
K - HT (MM)	95
RIDER HEIGHT (CM)	133-149
GRANDEUR ROUE (IN)	24

Kids Bikes

Rocky Mountain Flow Jr 24

Devinci Ewoc FS SX 12 - Green Aston

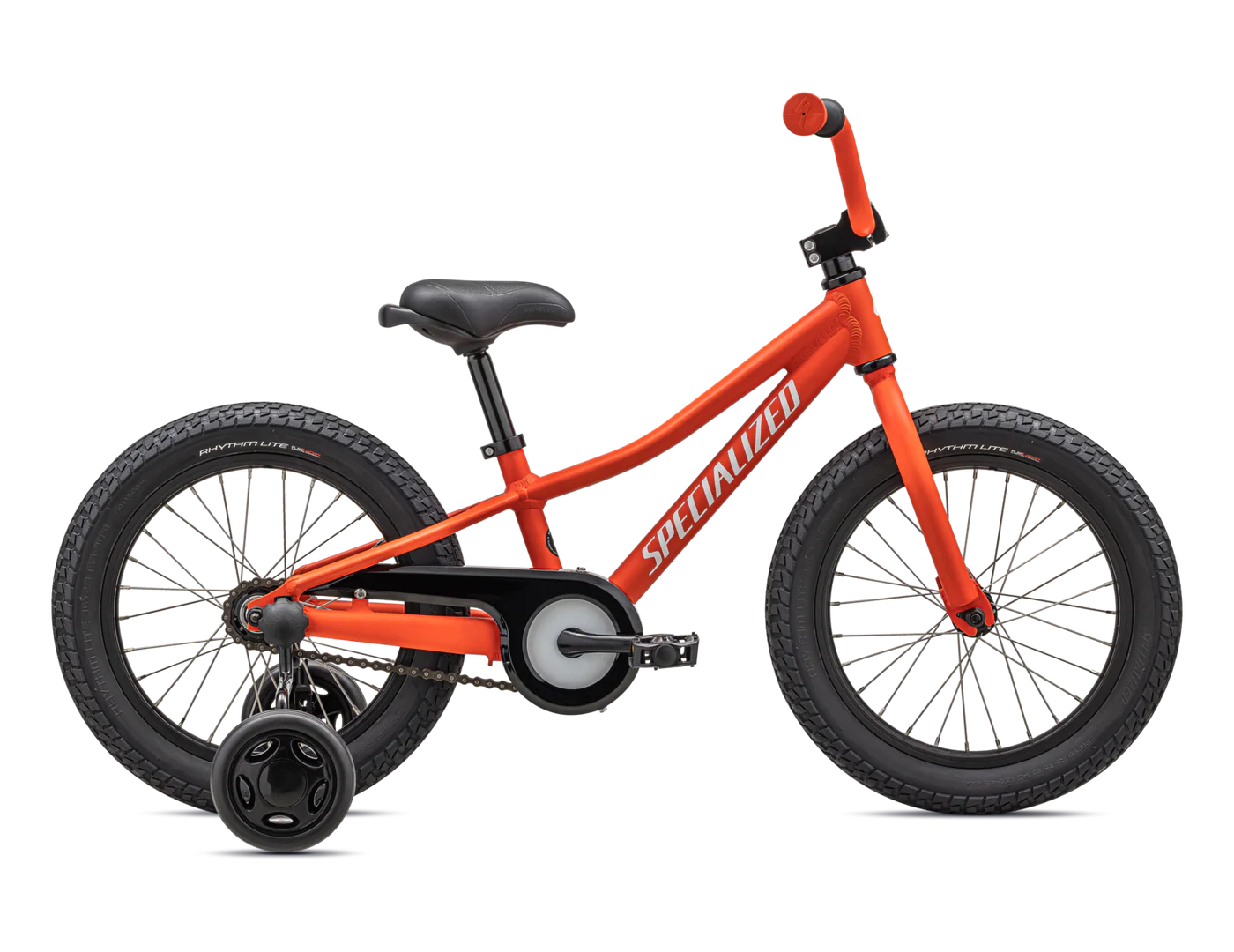

Specialized Riprock Coaster 16

Specialized Riprock 24

Specialized Riprock Coaster 20

Specialized P.2 Trail

Specialized P.1 Trail

Norco Storm 24

Norco Charger 24

Norco Charger 20

Norco Storm 26

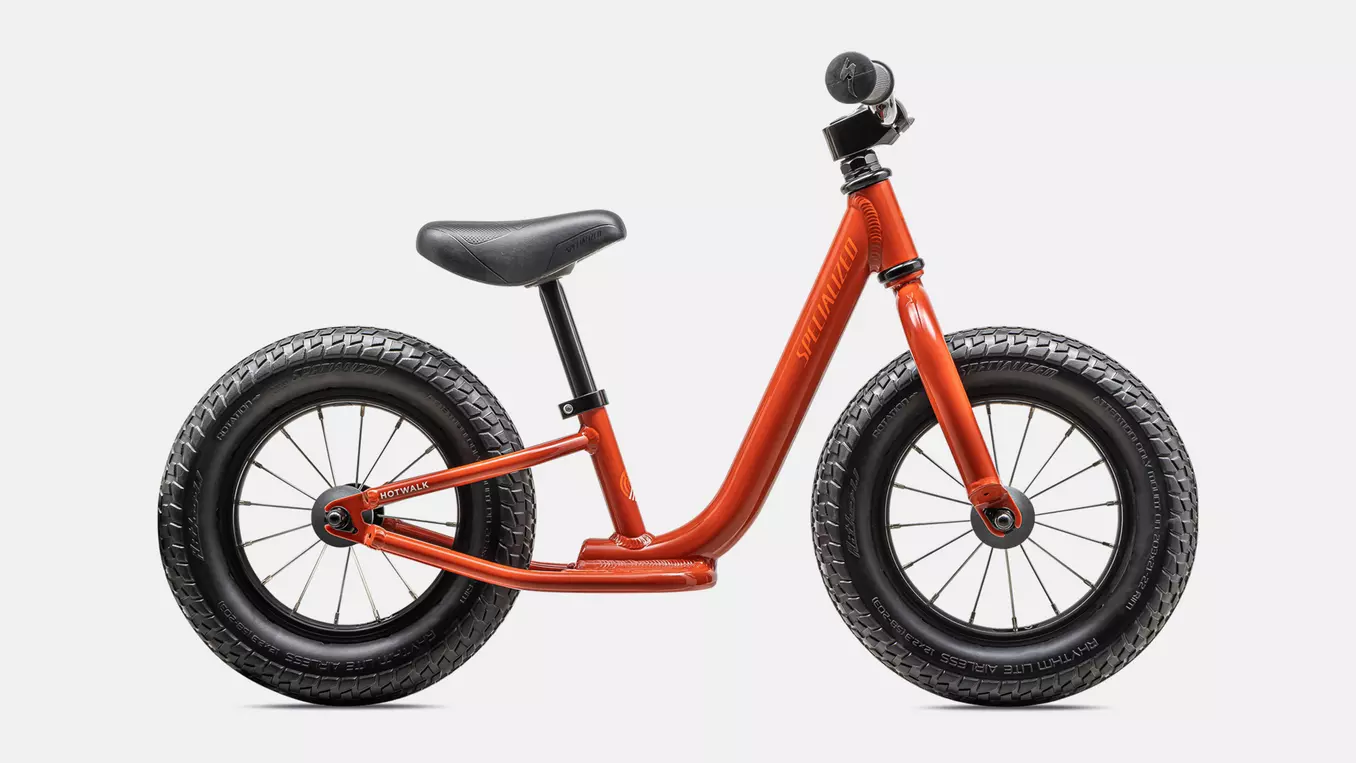

Specialized Hotwalk
